SUPPORTED POWER BOARDS

Ready to be used power boards and customer power board

Several power boards are tested with FPGA carrier board and Vivado s/w solution.

The systems based on Motor Power Boards and Controller Boards are ready to create customer evaluation KIT simply adding desired motor.

Customer can obtain free evaluation s/w and related documentation including Vivado projects or simply bitstream or sd-card files.

Customer can require Design Service to include Customer Motor Power Board in supported list for public or private usage only.

TLIMOT - 3-LEVEL INVERTERS

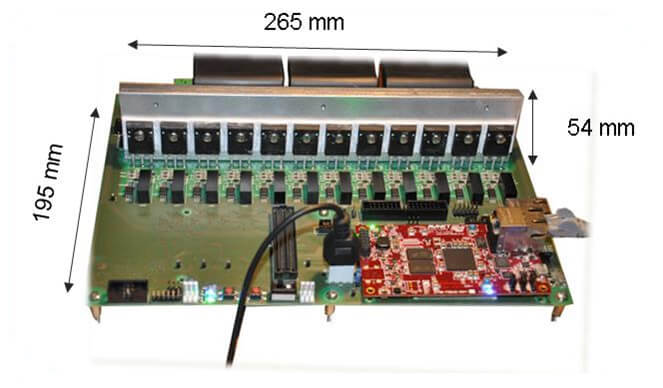

TLIMOT is a Multilevel Silicon Carbide converter that provide more than two levels of voltage to achieve smoother and less distorted dc-to-ac power conversion for motor drives and energy applications.

EDPS Power Stage

EDPS Power stage is Trenz-Electronic board designed to be controlled trough 2 x PMODS.

Supported carriers are :  Arty Z7-10Arty Z7-20PYNQ-Z1ZYBO-Z7-10Cora-Z7-10ZedBoardUltraZed (with UltraZed-EG IO carrier card)MiniZed

TEP2 Power Stage

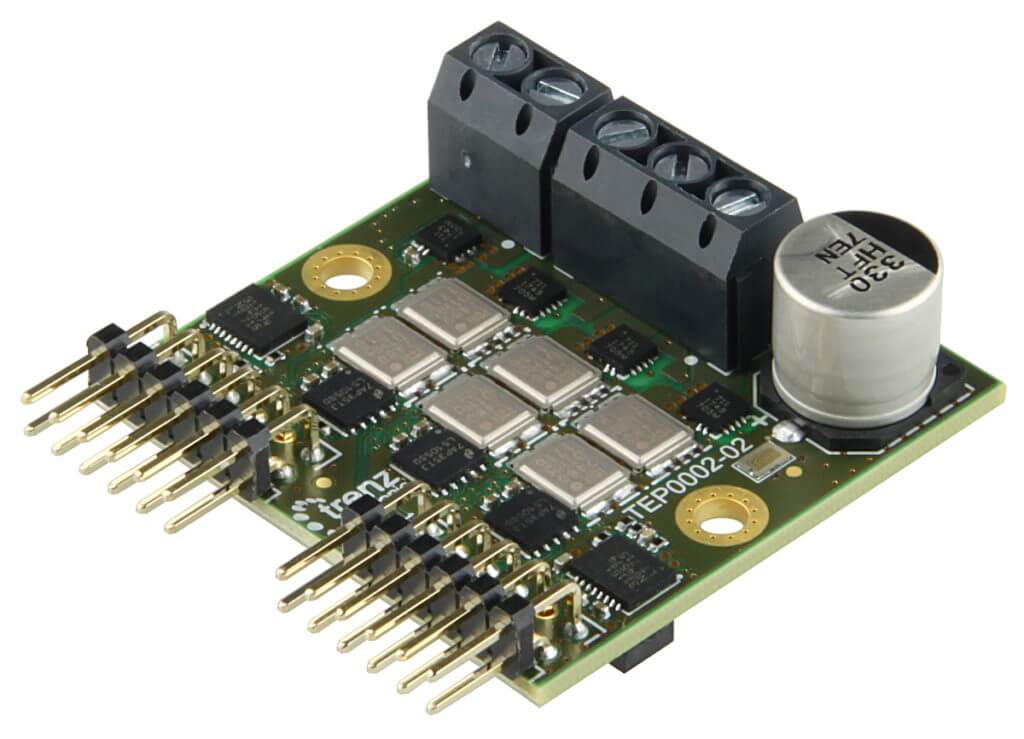

TEP0002 Power stage is a Trenz-Electronic board designed to be controlled trough 2 x PMODS.

Supported carriers are :  Arty Z7-10Arty Z7-20PYNQ-Z1ZYBO-Z7-10Cora-Z7-10ZedBoardUltraZed (with UltraZed-EG IO carrier card)MiniZed

KD240 Driver Starter Kits

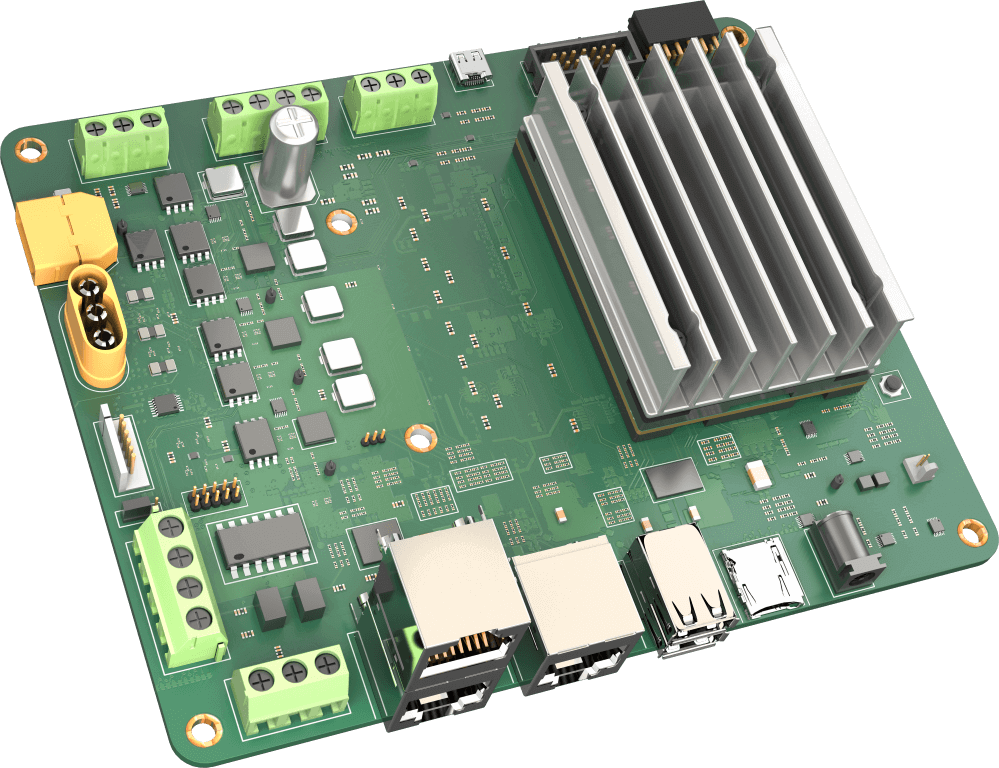

The AMD Kria™ KD240 Drives Starter Kit is comprised of a non-production version of the K24 system-on-module (SOM), carrier card, and thermal solution. The SOM integrates core digital hardware components including a AMD Zynq™ UltraScale+™ MPSoC, run-time memory, nonvolatile boot devices, an integrated power solution, and a security module. The drive-focused KD carrier card provides various application peripheral options including motor control, USB, SD card, and Ethernet physical interfaces.

The QDESYS motor control s/w is available for three different configurations:

  • Bare metal s/w solution using Vitis 2023.1 and QDESYS SDK,
  • Petalinux 2023.1 (for evaluation only),
  • Ubuntu 22.04 (for evaluation ony)

Read s/w installation procedure and open the KD240 resource folder.
